1. Overview

Azure AI Foundry allows agents to securely call external APIs through OpenAPI actions.

Authentication credentials are never stored inside prompts or OpenAPI Schema.
Instead, they are configured using Connected Resources.

2. High‑Level Architecture

Azure AI Agent
↓
OpenAPI Tool Action
↓
Connected Resource injects authentication
↓
External API

Security principle:

Secrets are stored in Azure Connected Resources, not inside the OpenAPI schema or agent instructions.

3. Configuring Connections in Azure for CampusMind

This section explains how to create and use Azure connections inside CampusMind UI.

Step 1 — Create Connection in Azure AI Foundry

1. Go to Azure Portal → Azure AI Foundry.

2. Open your Project.

3. Click Connected Resources.

4. Select + Add connection.

5. Choose Custom authentication.

6. Enter:

   • Key (e.g., X-API-KEY, Authorization, or appid)

   • Secret value

   • Enable Is Secret.

7. Provide Connection Name (example: weather_api_key).

8. Click Create.

Step 2 — Use Connection in Agent Actions

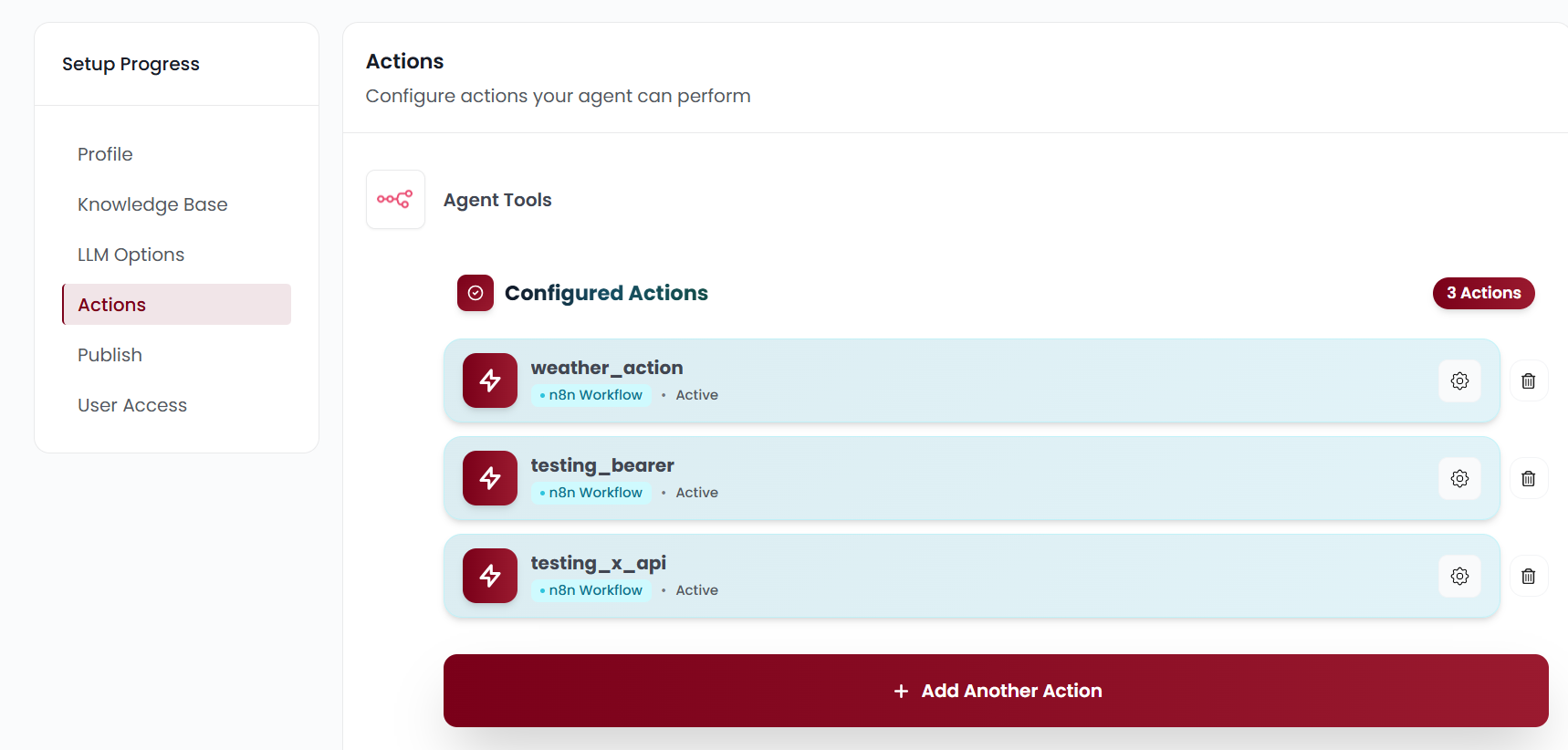

1. Open the Agent in CampusMind

2. Navigate to Actions → Agent Tools

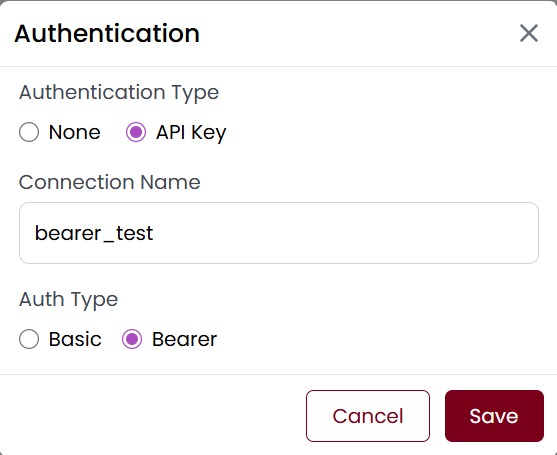

3. Select the authentication type:

   • Choose between API Key or None

   • If you select API Key, choose the auth type:

     • api-key (for API key as header or query parameter)



     • Bearer (for Bearer token authentication)



4. Add the connection name you created previously.

5. Add the OpenAPI schema



Click Save to save the agent configuration

4. Authentication Method Support Matrix

Example 1 — Query API Key (OpenWeather)

OpenAPI Schema

{
  "openapi": "3.1.0",
  "info": {
    "title": "Weather API",
    "version": "1.0.0",
    "description": "Get current weather information"
  },
  "servers": [
    {
      "url": "https://api.openweathermap.org/data/2.5"
    }
  ],
  "components": {
    "securitySchemes": {
      "apiKeyQuery": {
        "type": "apiKey",
        "in": "query",
        "name": "appid"
      }
    }
  },
  "security": [
    {
      "apiKeyQuery": []
    }
  ],
  "paths": {
    "/weather": {
      "get": {
        "operationId": "getCurrentWeather",
        "summary": "Get current weather",
        "parameters": [
          {
            "name": "q",
            "in": "query",
            "required": true,
            "schema": {
              "type": "string"
            },
            "description": "City name (e.g., London)"
          },
          {
            "name": "units",
            "in": "query",
            "schema": {
              "type": "string",
              "enum": [
                "metric",
                "imperial"
              ],
              "default": "metric"
            }
          }
        ],
        "responses": {
          "200": {
            "description": "OK",
            "content": {
              "application/json": {
                "schema": {
                  "type": "object"
                }
              }
            }
          }
        }
      }
    }
  }
}

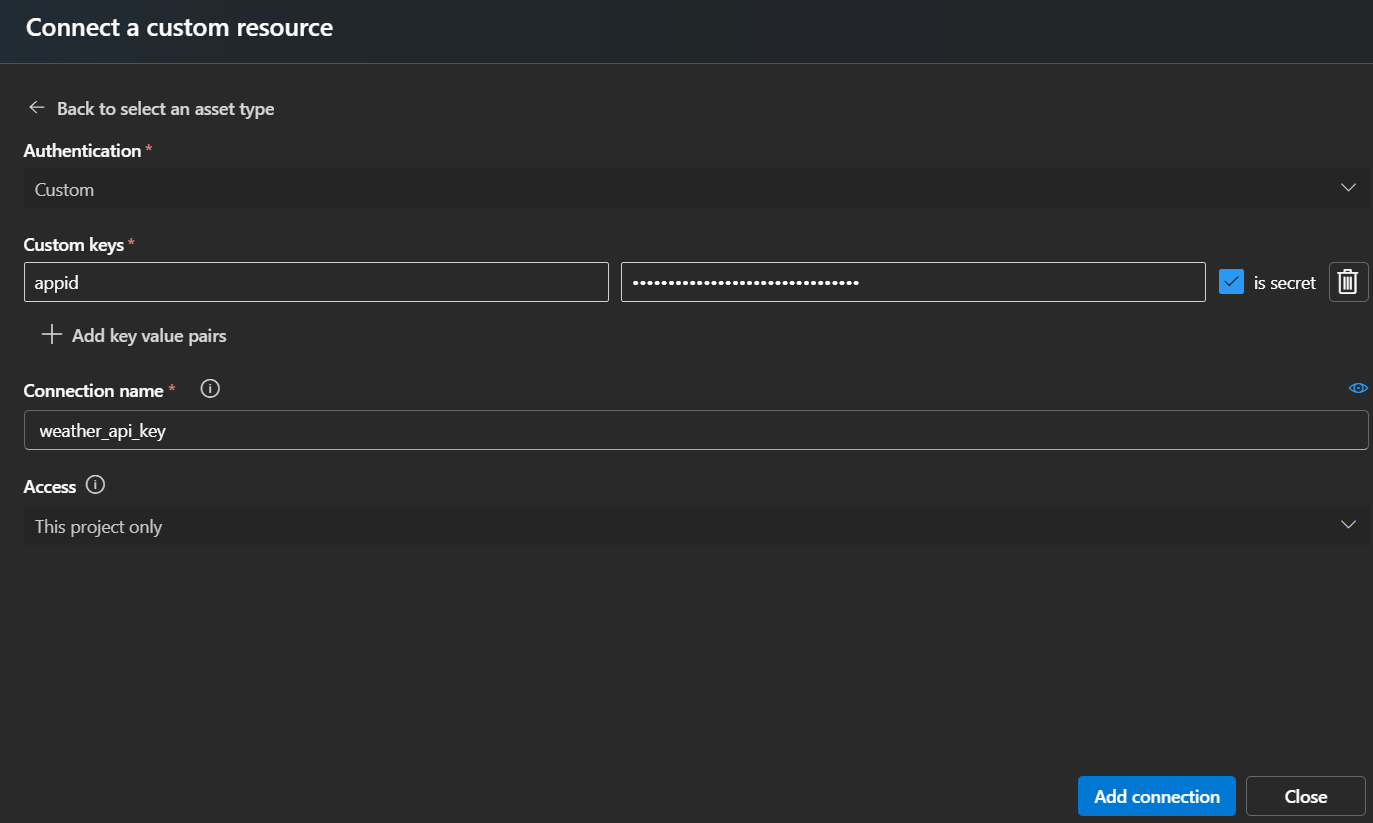

Connected Resource Configuration

• Authentication type: Custom

• Key name: appid

• Secret value: <client API key>

• Connection name: weather_api_key

Azure injects automatically:

?appid=******

Example 2 — Custom Header API Key

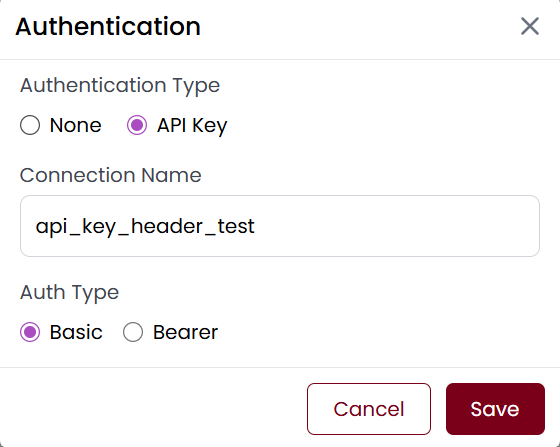

While configuration in agents select authentication type api-key and select type as api key as well.

OpenAPI Schema:

{
  "openapi": "3.0.1",
  "info": {
    "title": "API Key Header Test",
    "version": "1.0.0"
  },
  "servers": [
    {
      "url": "https://httpbin.org"
    }
  ],
  "paths": {
    "/headers": {
      "get": {
        "operationId": "testApiKeyHeader",
        "summary": "Validate API key header injection",
        "responses": {
          "200": {
            "description": "Success",
            "content": {
              "application/json": {
                "schema": {
                  "type": "object"
                }
              }
            }
          }
        },
        "__originalOperationId": "testApiKeyHeader",
        "security": [
          {
            "ApiKeyHeader": []
          }
        ]
      }
    }
  },
  "components": {
    "securitySchemes": {
      "ApiKeyHeader": {
        "type": "apiKey",
        "in": "header",
        "name": "X-API-KEY"
      }
    }
  },
  "security": [
    {
      "ApiKeyHeader": []
    }
  ]
}

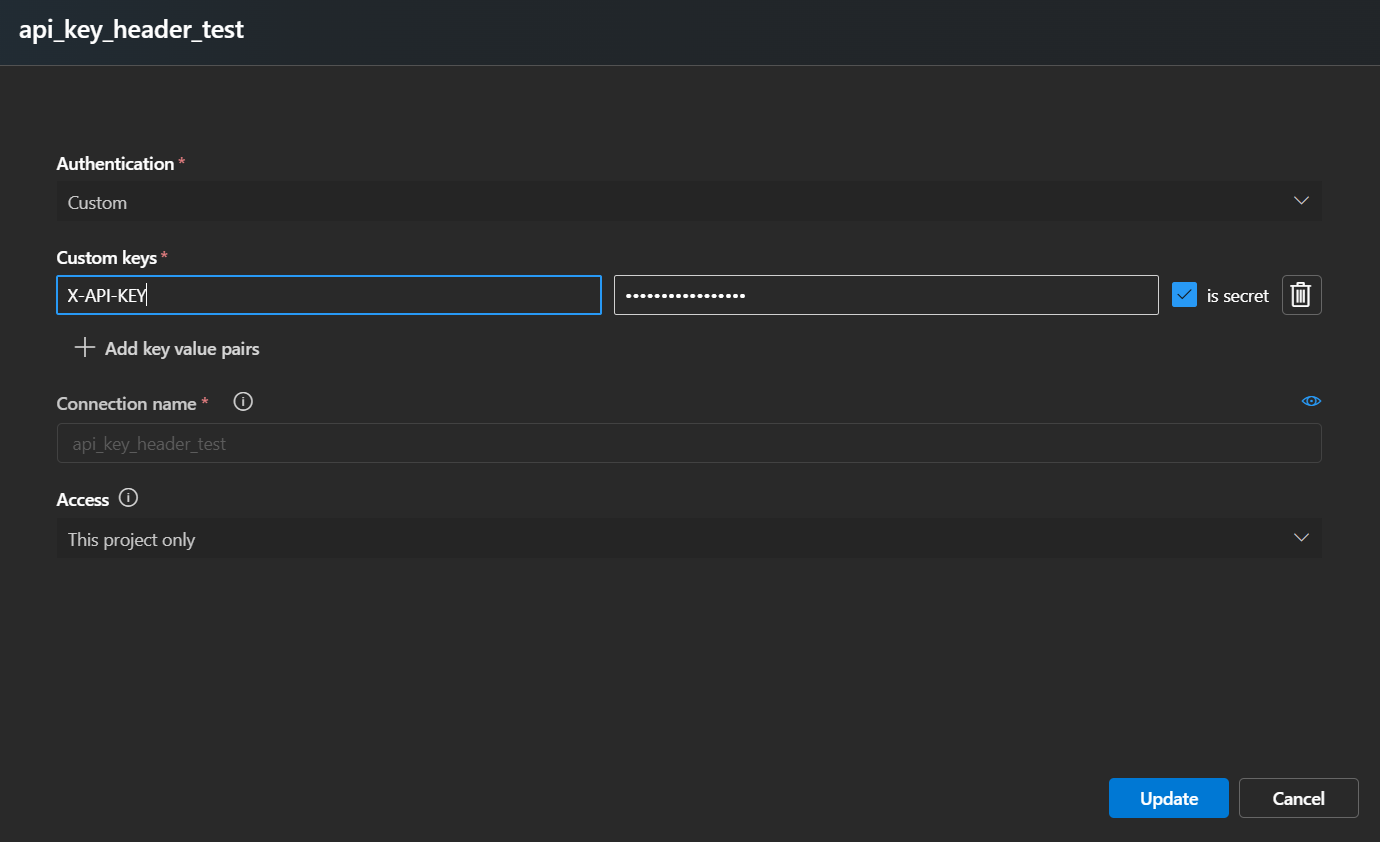

Connected Resource Configuration

• Key: X-API-KEY Value: my-secret-key-123

• Is secret: ✔

• Connection name: api_key_header_test

• Access: This project only

Example 3 — Bearer Access Token

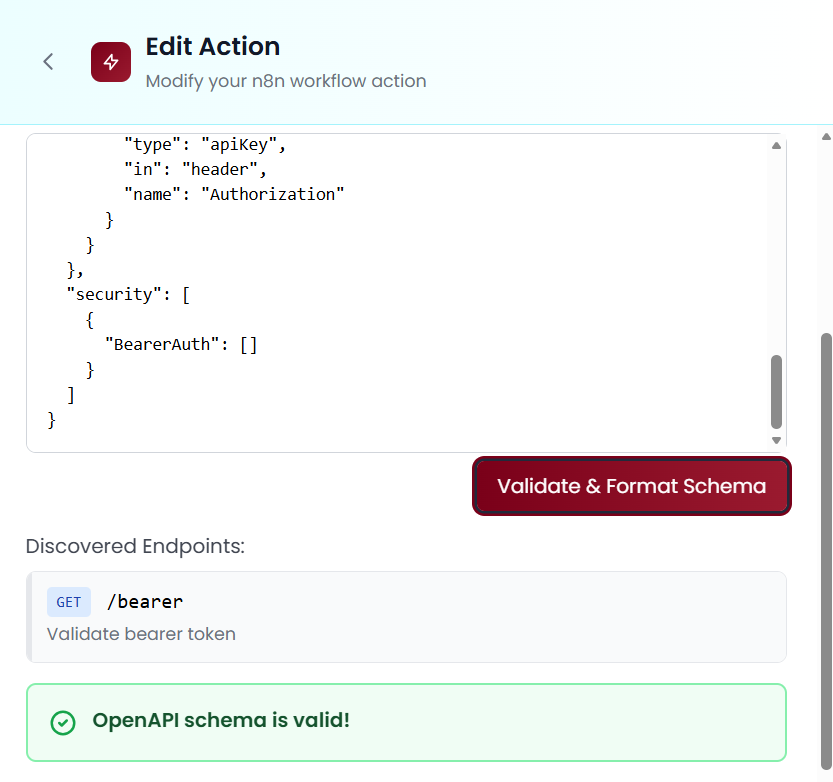

OpenApi Schema Example:

{
  "openapi": "3.0.1",
  "info": {
    "title": "Bearer Token Test API",
    "version": "1.0.0"
  },
  "servers": [
    {
      "url": "https://httpbin.org"
    }
  ],
  "paths": {
    "/bearer": {
      "get": {
        "operationId": "testBearerAuth",
        "summary": "Validate bearer token",
        "responses": {
          "200": {
            "description": "Success"
          }
        },
        "__originalOperationId": "testBearerAuth",
        "security": [
          {
            "BearerAuth": []
          }
        ]
      }
    }
  },
  "components": {
    "securitySchemes": {
      "BearerAuth": {
        "type": "apiKey",
        "in": "header",
        "name": "Authorization"
      }
    }
  },
  "security": [
    {
      "BearerAuth": []
    }
  ]
}

Azure Agent Injects:

Authorization: Bearer test-token-123

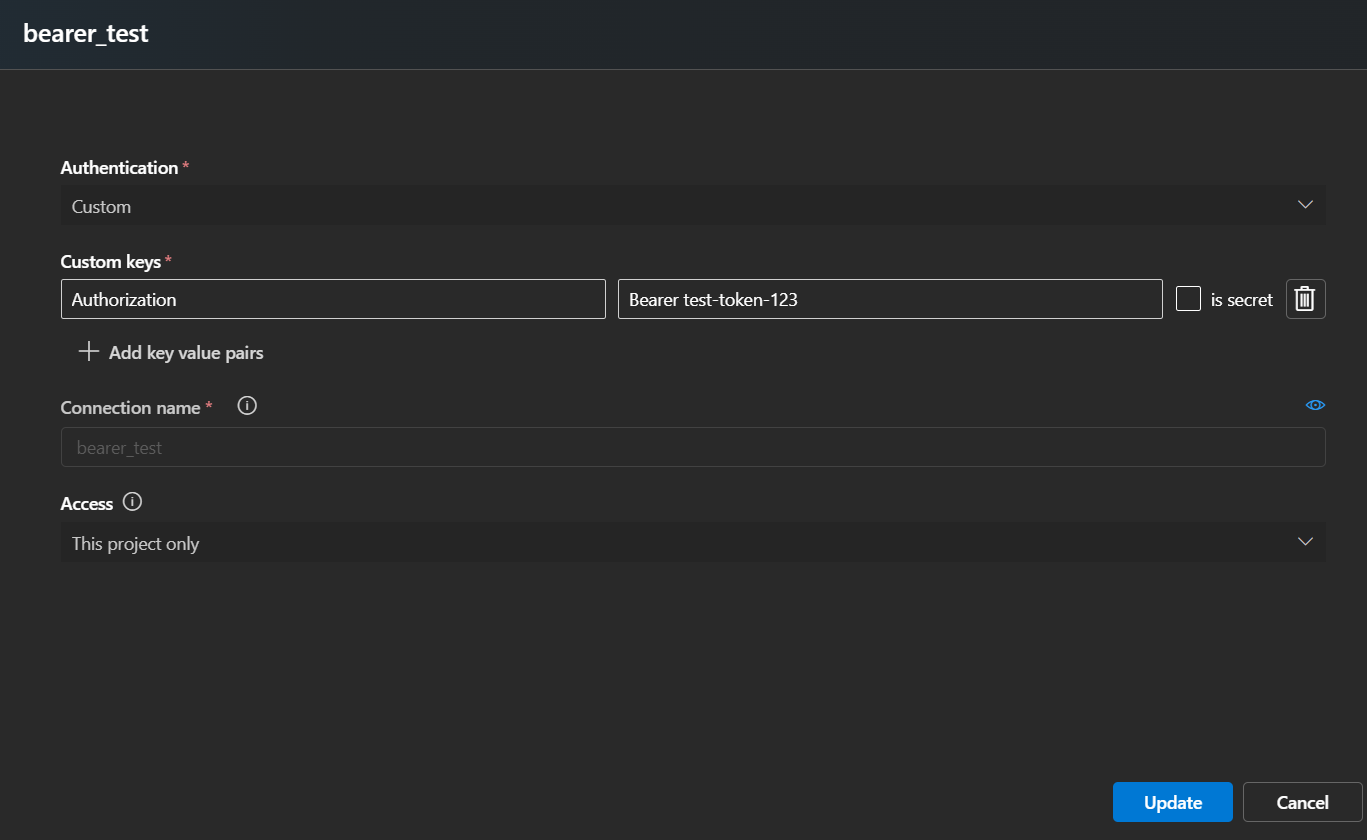

Connected Resource Configuration

• Authentication type: Custom

• Key name: Authorization

• Secret value: Bearer <token>

• Connection name: bearer_test

Example 4 — OpenAPI Without Authentication (Public API)

We’ll use a public httpbin endpoint that requires no headers or keys:

GET https://httpbin.org/get

This simply returns request details.

OpenApi Schema:

{
  "openapi": "3.0.1",
  "info": {
    "title": "Public Test API",
    "version": "1.0.0"
  },
  "servers": [
    {
      "url": "https://httpbin.org"
    }
  ],
  "paths": {
    "/get": {
      "get": {
        "operationId": "testPublicEndpoint",
        "summary": "Call public endpoint without authentication",
        "responses": {
          "200": {
            "description": "Success",
            "content": {
              "application/json": {
                "schema": {
                  "type": "object"
                }
              }
            }
          }
        }
      }
    }
  }
}

When adding this OpenAPI action:

• Do NOT select any Connected Resource

• Leave authentication = None

• Save the action and test in Agent Playground

8. Summary

CampusMind Agents Actions supports all major API authentication patterns required by enterprise clients:

• API keys (header or query)

• Bearer access tokens
